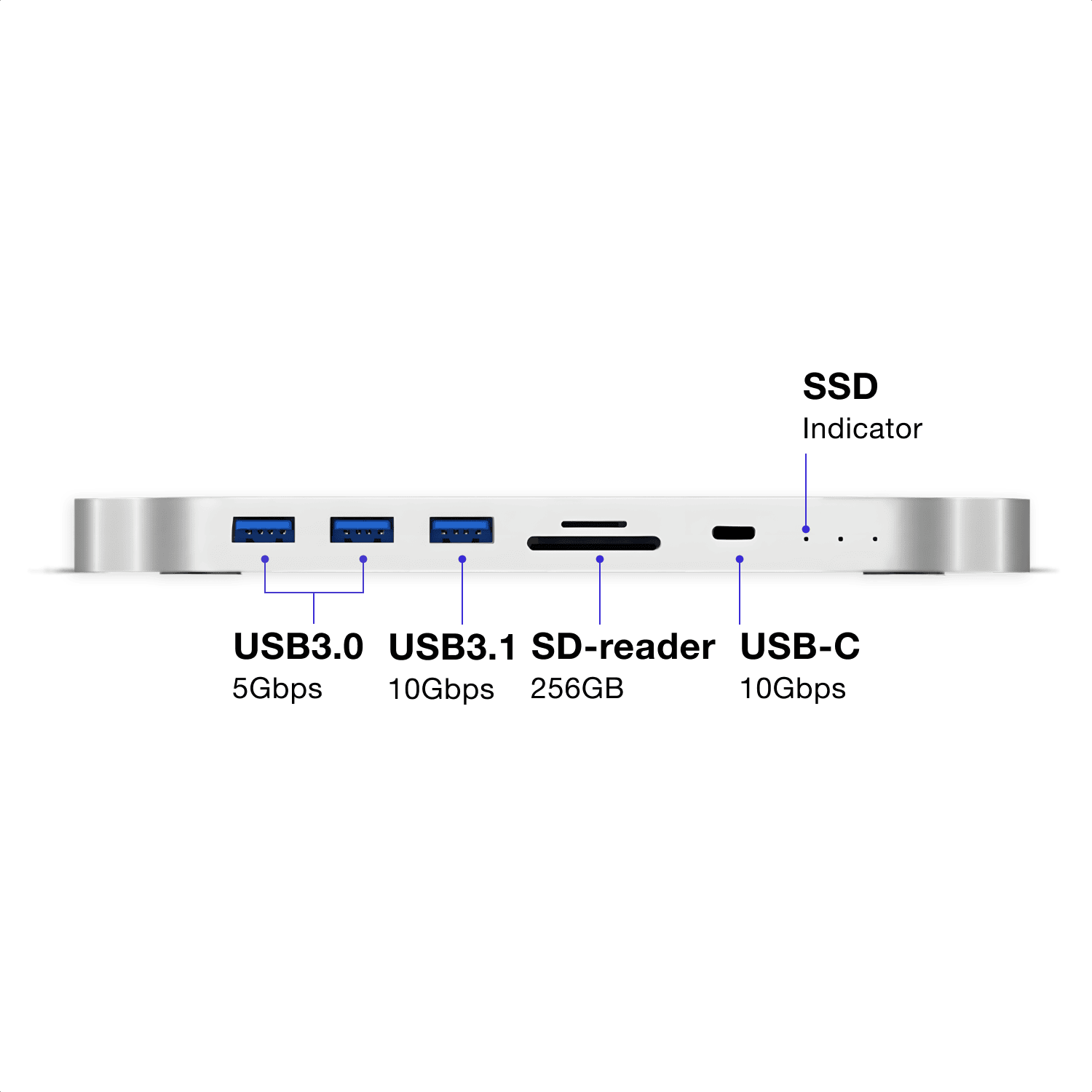

specificaties usb, m.2 ssd, hdmi, usb-c, sd-reader

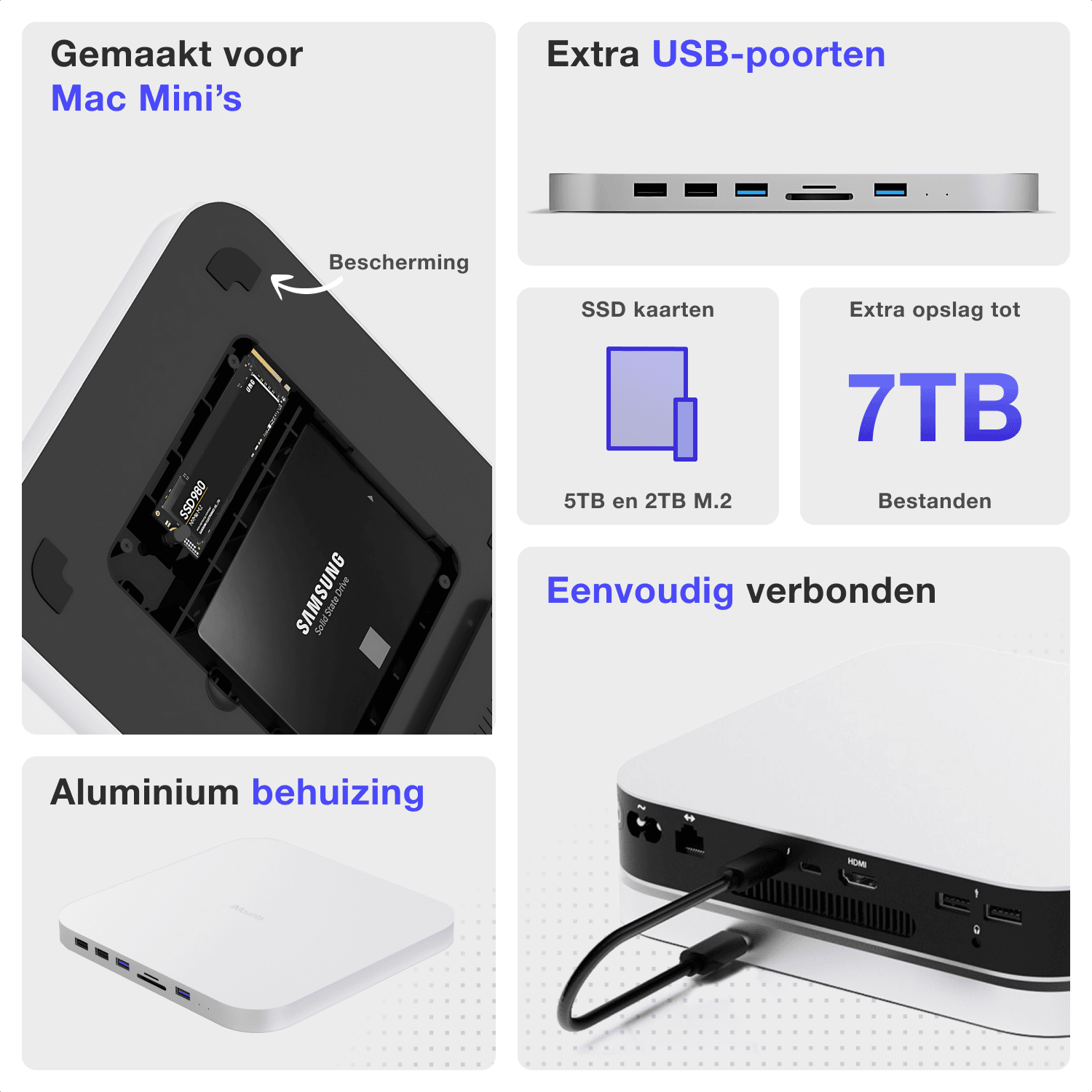

specificaties mac mini docking station m2 van imounts

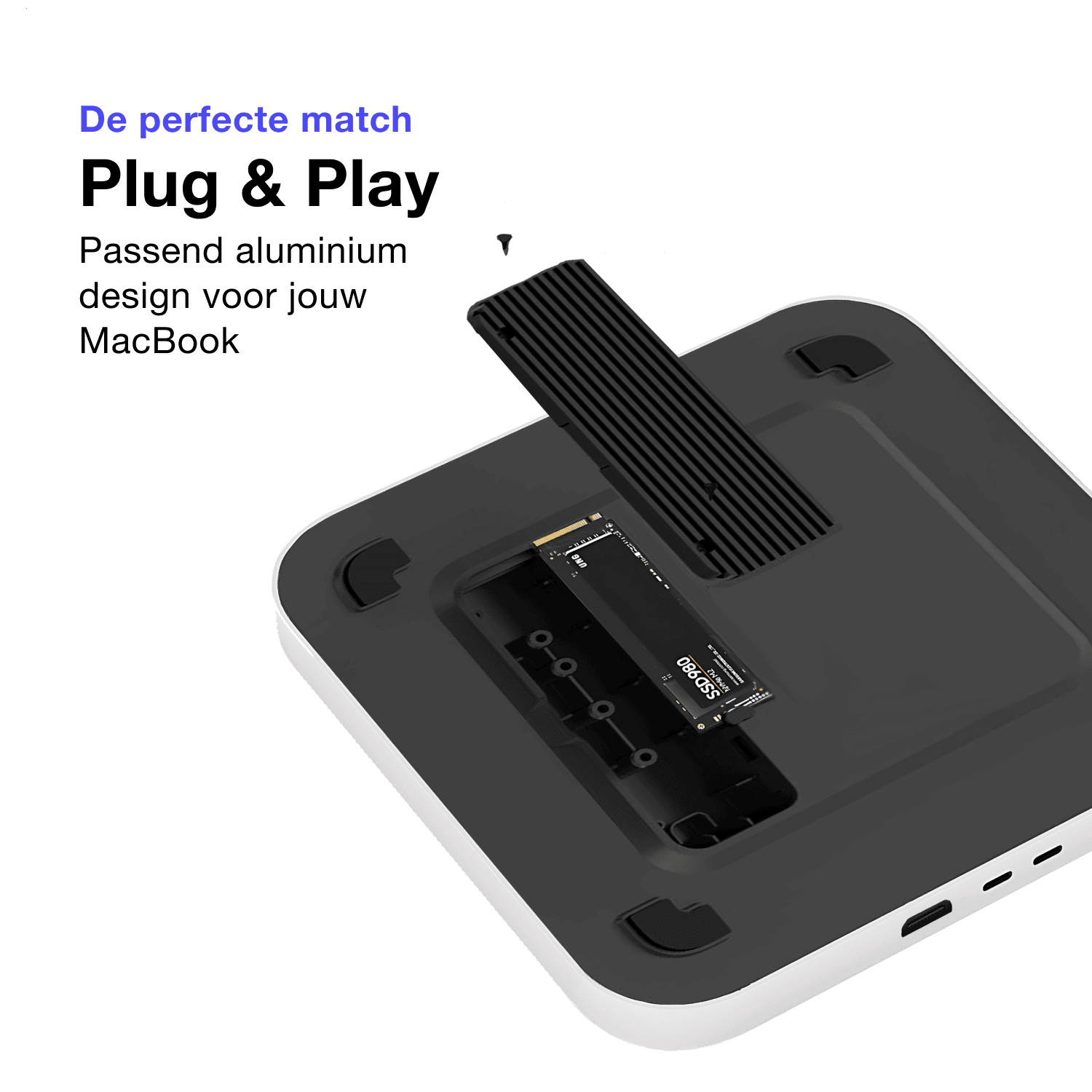

onderkant mac mini docking station m.2 ssd kaart

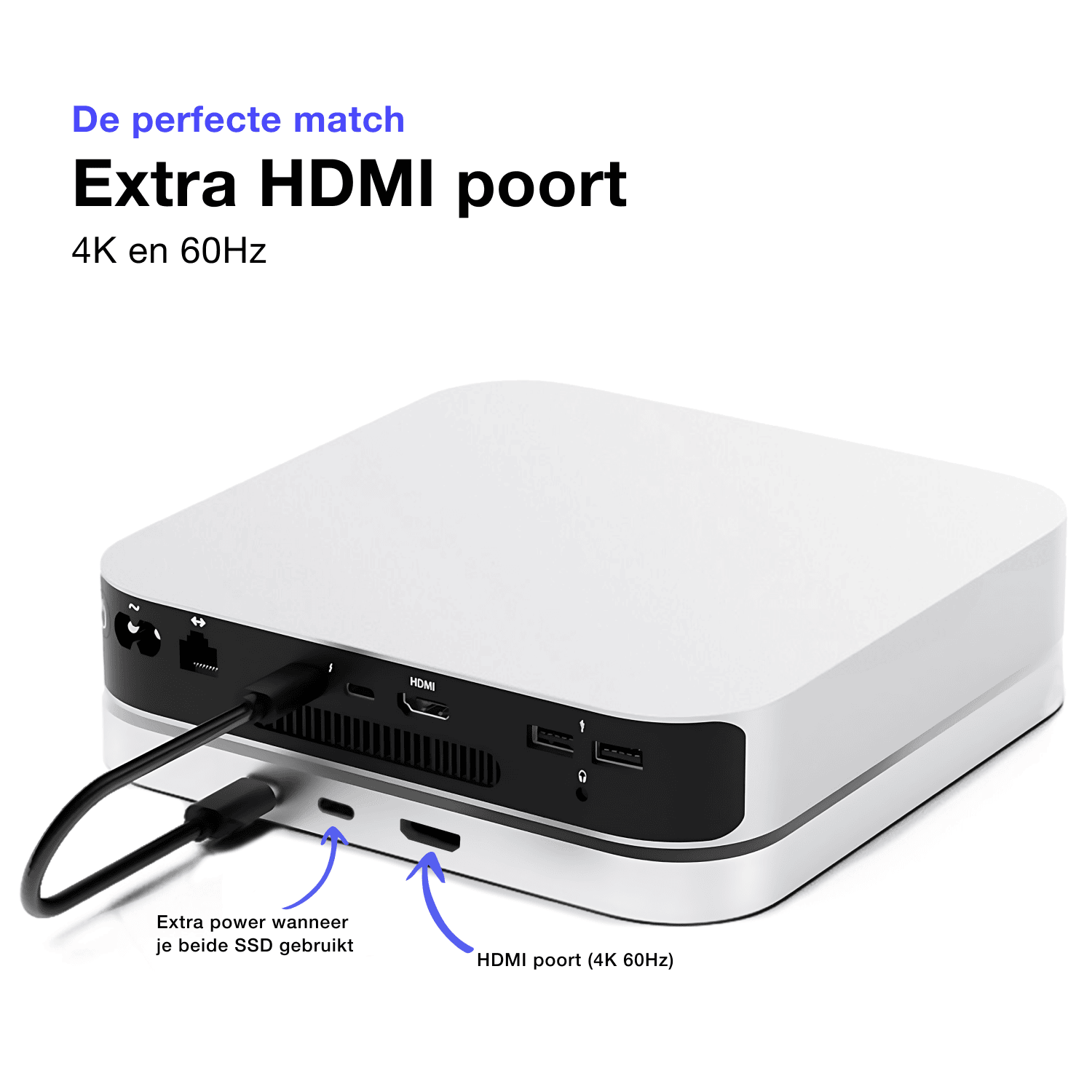

achterkant mac mini docking station met hdmi poort

sfeerafbeelding mac mini op bureau in gebruik

iMounts Store

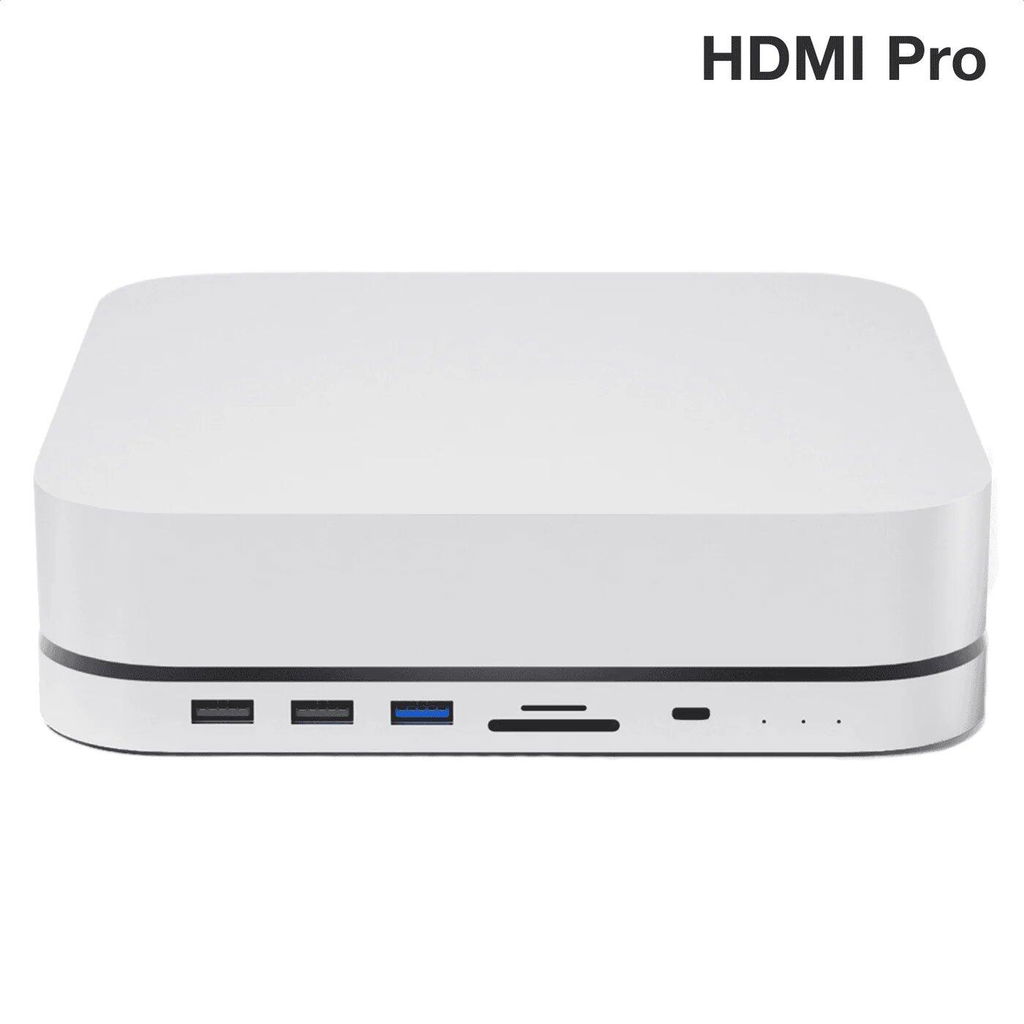

Mac Mini docking station Pro HDMI

Name: Mac Mini docking station Pro HDMI
Brand: iMounts Store
SKU: IMD3
Price: 79.95 EUR
Availability: InStock

€79,95

€109,95

Save 27%

Extra storage: Add up to 5TB of SSD storage with an M.2 NVMe or NGFF SSD. Enjoy fast file transfers of up to 950 MB/s with an M.2 SSD.
4K Display Extension: Easily connect a second display via the HDMI 2.0 port with support for up to 4K @ 60Hz.
Plug & Play: No software required – ready to use immediately, ideal for working with two screens simultaneously.
Fast USB Ports: Additional USB-C and USB 3.1 ports on the front with speeds up to 10 Gbps .

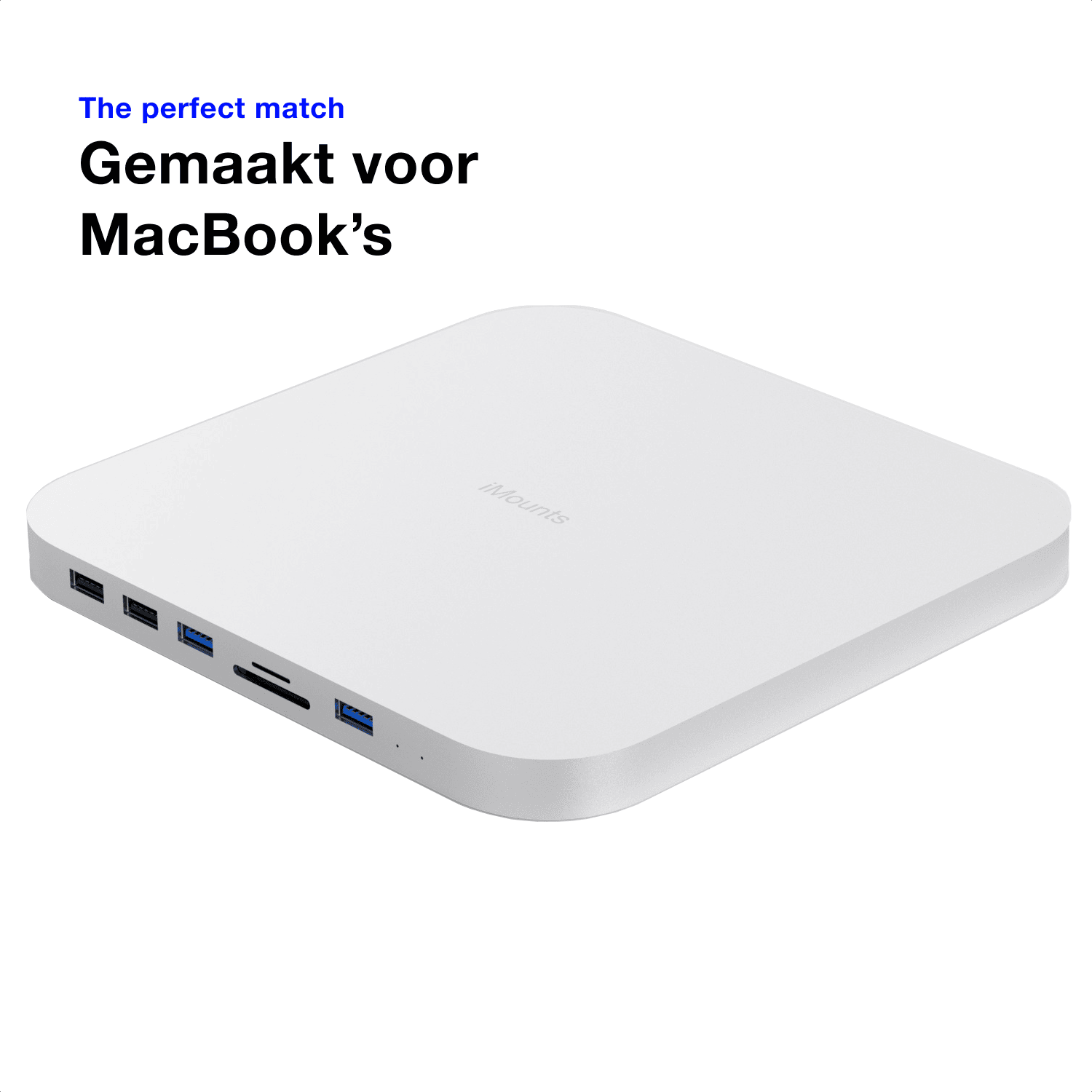

Mac Mini Design: The docking station is the same size and style as your Mac Mini, including rubber pads for placement above or below your device.

Voor 22:00 besteld, morgen in huis (NL/BE)

Quantity:

In stock

Free Shipping

Monday to Friday, order before 19:00 – shipped the same day! 🚀

14 days reflection period

Free returns and standard 1 year warranty

SKU: IMD3

Description

Get the most out of your Mac Mini with the iMounts Pro M.2 HDMI Docking Station

Upgrade your Mac Mini with extra ports, fast storage, and an HDMI output for a second display. This aluminum docking station is specifically designed for the Mac Mini and fits seamlessly into your setup—can be positioned either above or below thanks to the non-slip pads on the bottom.

With the integrated M.2 SSD slot (NVMe/NGFF), you can easily expand your storage by up to 5TB. You can also easily connect a second display via the HDMI 2.0 port with support for up to 4K @ 60Hz. Thanks to the USB 3.1 and USB-C ports, you can work faster with external devices like hard drives, cameras, or keyboards.

✅ Key benefits:
M.2 SSD- (up to 5TB, NVMe or NGFF without heatsink)HDMI -for external screen (4K @ 60Hz
USB3.1 and USB-C(10Gbps transfer speed) –Suitable designaluminum housing with identical dimensions
Plug & Play– ready to use without software

Read and write speeds of up to 950 MB/s are possible when using an M.2 NVMe SSD, ideal for editing files directly or expanding your work environment.

Compatible with:
Mac Mini M2 (2023)
Mac Mini M1 (2020)
Mac Mini (2018)
Mac Studio

Specifications

1x 2.5” SSD port: A standard port that supports 2.5” SATA SSD cards up to 8TB, the SSD can be a maximum of 9.5mm high, no HeatSink. The read and write speed is limited to 400MB/s.

1x M.2 SSD:NGFF or NVMe (most common) Type PCIe Gen 3.1 or newer, supports up to 2TB and has a read and write speed of up to 950MB/s,

DP1.4:A display port with image quality up to 4K@60Hz

2x USB3.0:Transfer files with 5Gbps and power output of 5V/900mAh

1x USB3.1:Transfer files at 10Gbps and power output of 5V/900mAh

SD reader: Transfer files at 5Gbps and max 256Gb (SD and micro-SD cannot be used at the same time)

USB-C port:Transfer files with 10Gbps and power output

USB-C port (rear):For connection to the Mac Mini

USB-C port (rear):Additional power supply to the Mac Mini when both SSDs are used or

when many USB devices are connected. The second included cable can be connected to the Mac Mini as well as to an external adapter up to 15W.

Material:An aluminum housing with an ABS plastic bottom. The bottom has rubber pads so that it does not slip or scratch.

Suitable for

Mac Mini M2 (2023)

Mac Mini M1 (2020)

MacStudio

Mac Mini Intel (2018)

Can also be used for other computers with a USB-C port that supports data transfer and power in/output.

Which SSDs can you use?

For example, which M.2 SSDs can be used? (NVMe or NGFF with M-key or B+M key)

Samsung: 980/ 980 Pro/ 970 / 970 Pro / 970 Evo / 960 EVO / 950 Pro (No Heatsink)

Kingston: NV1 / DC1000B / KC3000 / A400

Seagate: BarraCuda Q5/510, FireCuda 520/510

For example, which SSDs (2.5") can be used?

Samsung: 870, 860, 850

Kingston: A400, KC600, UV500

WD: SA500

Crucial BX500

Do you need advice?
Ask us a question

More Mini.

Experience the convenience of maximum storage and the use of additional ports.
Upgrade your Mini's memory in style.

Upgrade the storage memory
An internal SD reader
Additional USB ports for peripherals

Compare.

iMounts offers several SSD docking stations for the Mac Mini. The table below explains the most important differences.

Mac Mini docking station SSD - silver

€69,95

€79,95

Look at

iMounts Mac Mini Docking Station met uitbreidbare opslag en USB-poorten

Mac Mini docking station SSD and M.2 SSD Pro - silver

€98,95

€109,95

Look at

Mac Mini docking station Pro HDMI

€79,95

€109,95

Look at

Type of SSD

2.5" SSD (8TB)

2.5" SSD & M.2 (10TB)

Speed

400 MB/s

900 MB/s

USB-C port

No

Yes

External monitor

No

Yes

Get the most out of your Mini.

No more limitations, thanks to the Mac Mini docking station. Maximize your storage memory up to 10TB with the Pro version and experience the convenience of an All-in-one USB-C docking station.

More storage

The Mac Mini docking station allows you to connect an internal SSD card directly to your Mac Mini.

Additional ports

Connect multiple devices at once. The docking station is equipped with extra ports such as a USB3.0 and an SD reader

Mac Mini

Suitable design for your Mini. Place the docking station both above and below your Mac Mini.

Get the most out of your Mini

The perfect match.
